S³-Estore C&I

Energy Storage System

S³-Estore C & I Energy Storage System highly integrates PCS, BMS, EMS, batteries, fire protection, and liquid cooled systems, with advantages such as high power density, modular design, and easy installation, meeting the application needs of various industrial and commercial scenarios

Proactive Safety Management

High Power Density

System Efficiency ≥ 90%

Temperature Difference ≤3℃

215kWh

Proactive Safety Management

High Power Density

System Efficiency ≥ 90%

Temperature Difference ≤3℃

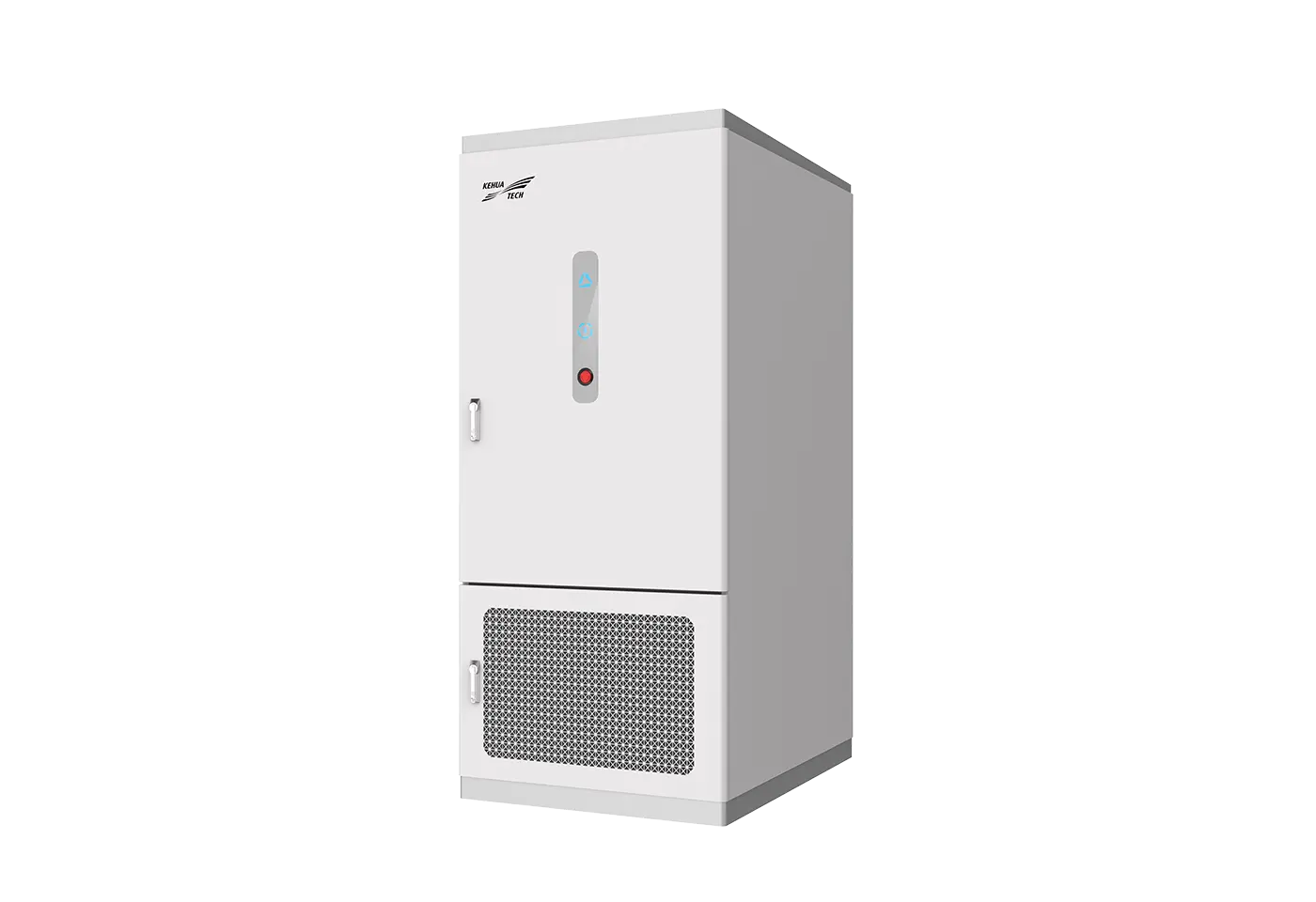

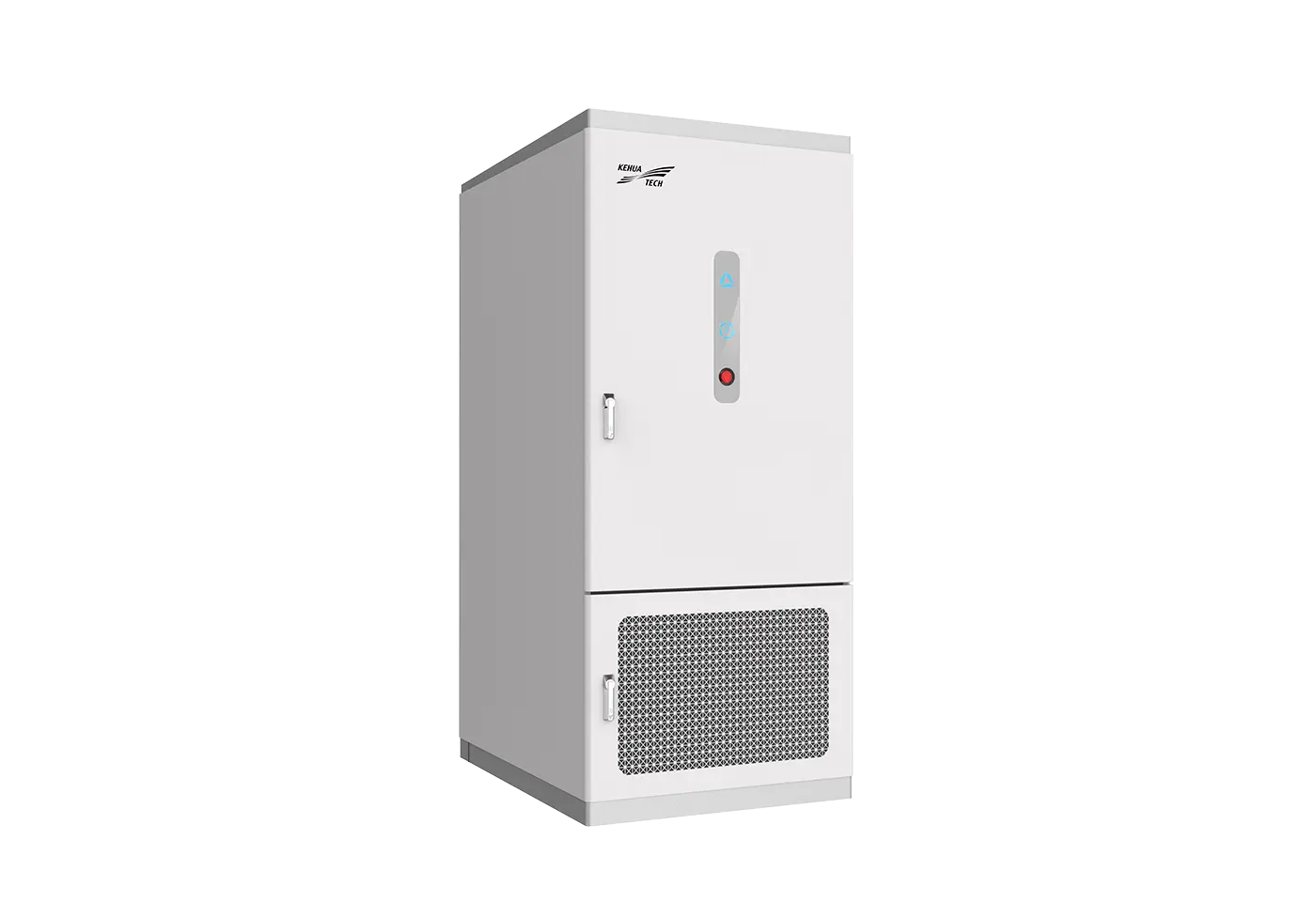

S³-Estore C&I Energy Storage System

Product Highlights

Product Parameters

Application Cases

Relevant Products

4 Reasons for Choosing

01

More Safe

Cell status fully monitoring & multi-level fire protection

Two level BMS redundancy management ensures safe battery operation

Online insulation detection & Accurate positioning protection
02

More Flexible

High power density, only take up 1.3m²

All-in-one design, Flexible transport & fast installation

Modular combination, PCS+BMS+EMS linkage design
03

More Intelligent

Health status detection, Real time tracking of work status

Refined thermal management, temperature difference within system ≤3°C

One cluster, one charging and discharging, system efficiency ≥ 90%
04

More reliable

Good grid adaptability and excellent output power quality

Reactive power regulation range -1 (lag) -+1 (lead)

Pack IP67 grade, PCS IP66 grade,System IP54

Product Parameters

Technical parameters	ESI215-100K-M
Rated AC power（kW）	100
System energy capacity（kWh）	215
P rate	≤ 0.5P
Depth of discharge	0~95%
Cooling type	Liquid cooling
System battery voltage range（Vdc）	600-876
Rated AC voltage(Vac)	400 3P3W+PE
Nominal grid frequency (Hz)	50/60
AC voltage range (Vac)	-15%-10% (settable)
Dimension（W×D×H）mm	1000×1300×2340 (including lifting rings)
Operating temperature range（℃）	-35~55(>45 reduction)
Fire distinguish equipment	Gas aerosol +Proactive fire warning
Compliance	IEC/EN 62477-1, EN IEC 61000-6-2/4, IEC 62619,EN 61000-3-12, EN IEC 61000-3-11, VDE-AR-N 4105, EN 50549-1, NC RFG, CEI:0-21, CEI:0-16, TOR Erzeuger Typ A/B
