240~400kW

Integrated DC Charger

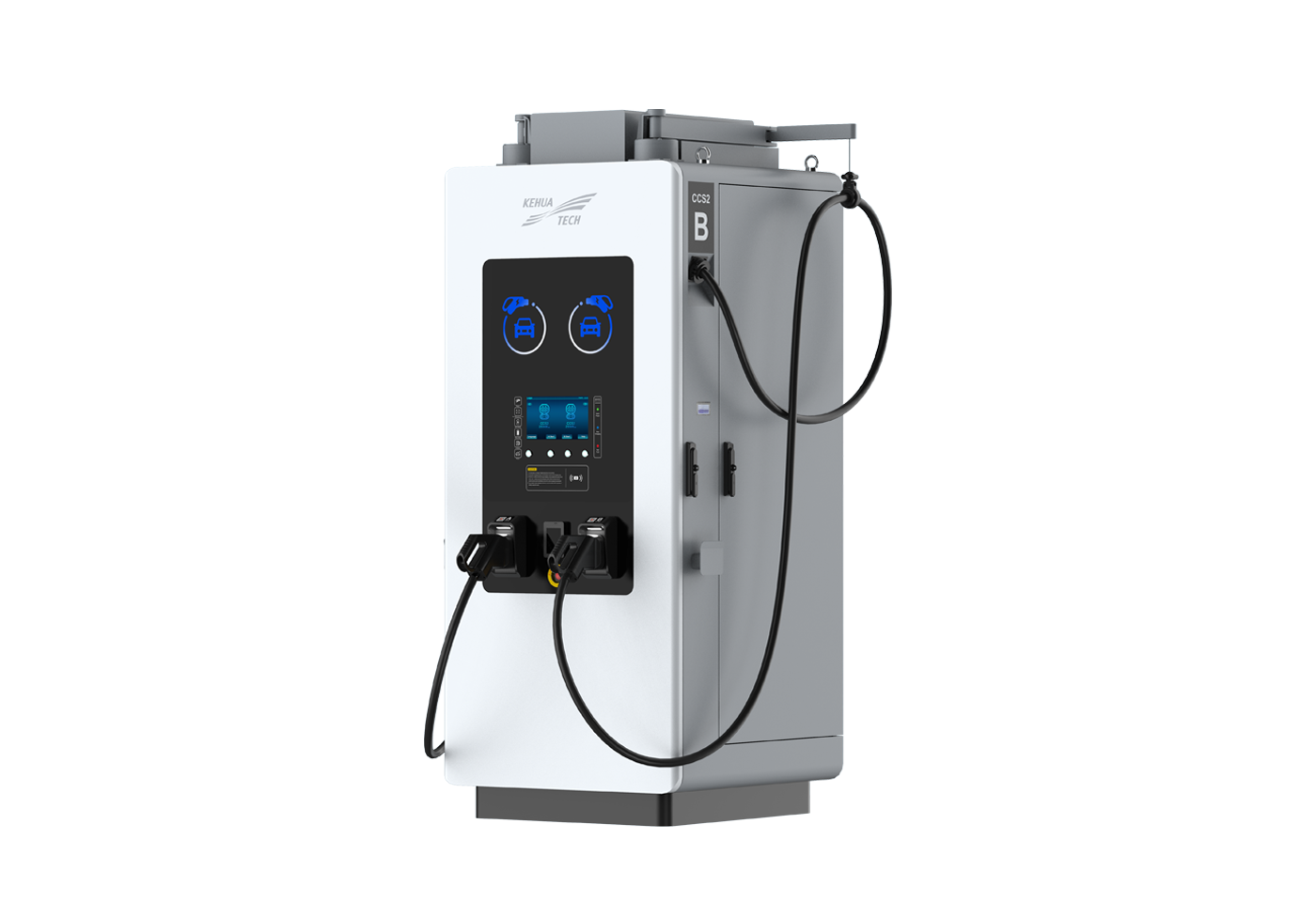

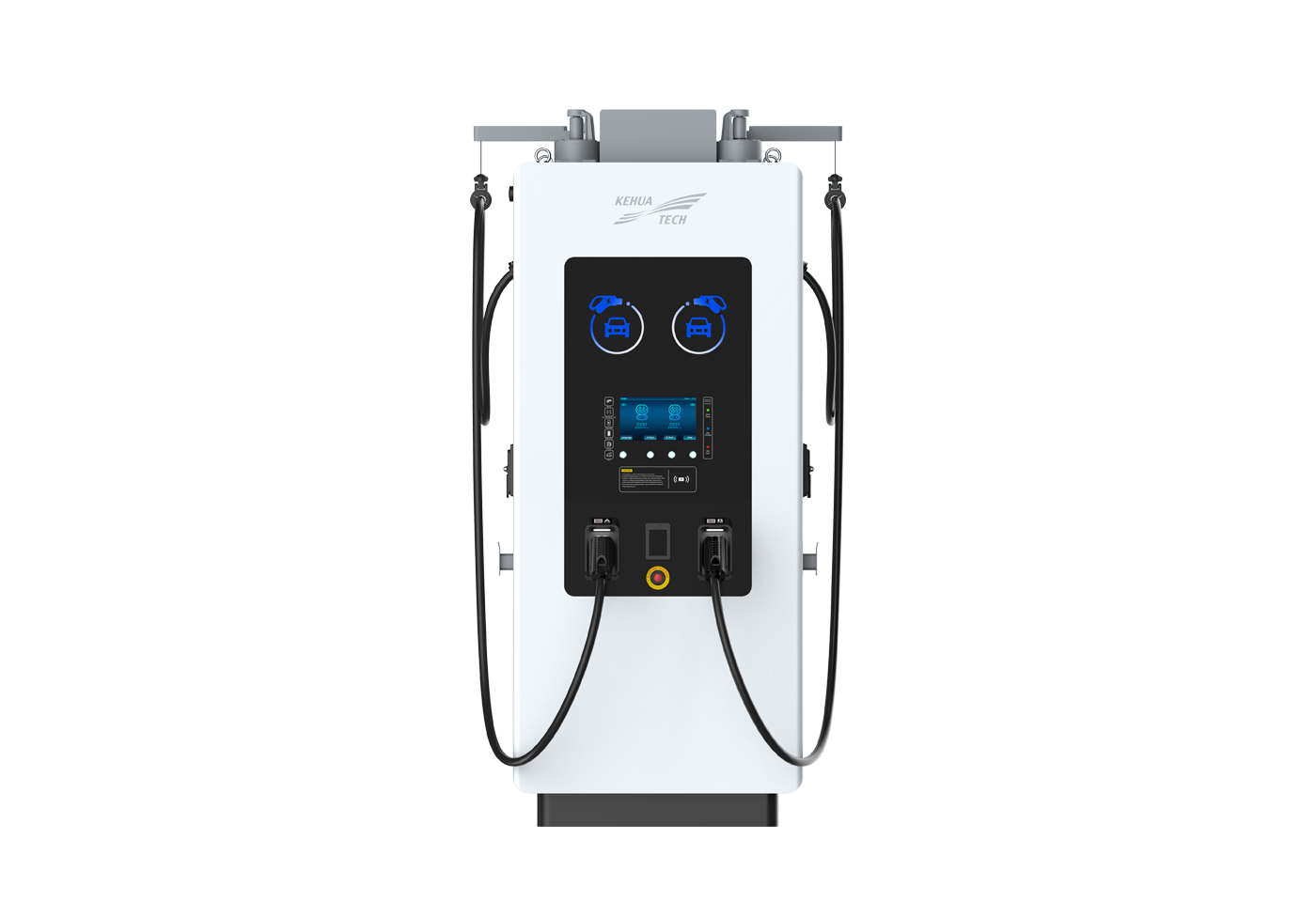

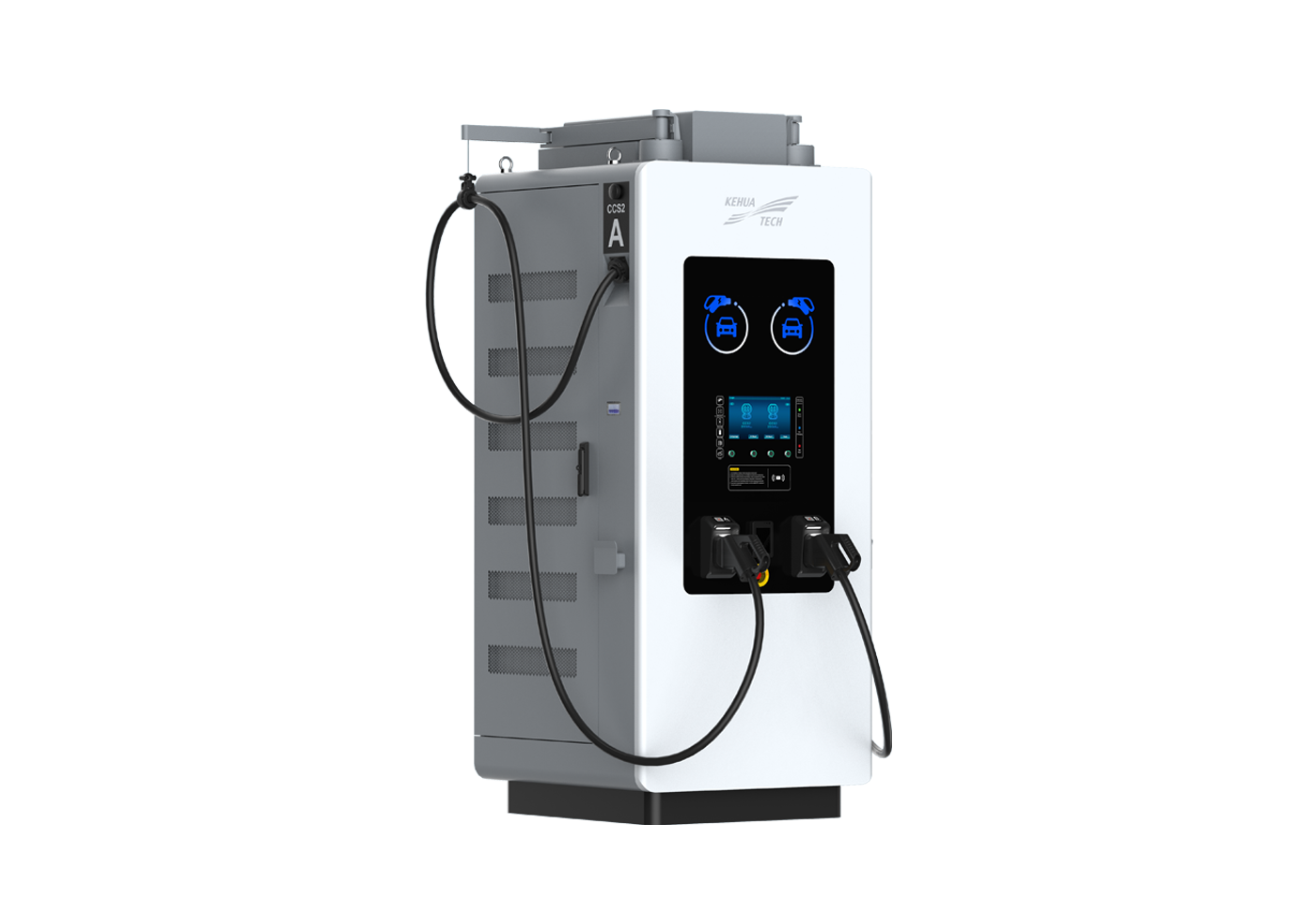

The EVD-240~360TF (CE) integrated DC charger uses smart power allocation and dual-cable simultaneous charging technology, offering high efficiency, reliability, and easy maintenance, and can be used for truck charging, fleet charging, public charging, highway charging, bus charging, and other use cases.

Dual-Cable Simultaneous Charging
Smart O&M OTA upgrade
100+ Protections
≥96.5% peak efficiency
240~400kW

The EVD-240~360TF (CE) integrated DC charger uses smart power allocation and dual-cable simultaneous charging technology, offering high efficiency, reliability, and easy maintenance, and can be used for truck charging, fleet charging, public charging, highway charging, bus charging, and other use cases.

Dual-Cable Simultaneous Charging
Smart O&M OTA upgrade
100+ Protections
≥96.5% peak efficiency
4 Reasons for Choosing
  • 01
    More Reliable

    Automotive-grade manufacturing ensures durability in harsh environments

    100+ protection and alarm functions ensure safety

    Module in-position detection enhances reliability

    Advanced three-phase imbalance control for complex grid conditions

  • 02
    More Intelligent

    ≥96.5% peak efficiency reduces energy loss

    Supports CCS2 high power constant output

    Supports dual-cable simultaneous charging

    Unique airflow design and sound-absorbing materials to reduce noise

  • 03
    User Friendly

    200~1000V ultra-wide output supports a wide range of EVs

    Supports integration with multiple platforms via OCPP 1.6J

    High-brightness touch screen with an inclusive user interface

    Optional cable management systems

  • 04
    Easy O&M

    Smart O&M management with online OTA upgrade

    Supports Interactive data upload platform and fault logging

    Slide-out G3 dust filter reduces maintenance time to under 5 minutes

Product Parameters
Technical parameters

EVD-240TF/EVD-320TF/EVD-360TF/EVD-400TF

Input voltage range

400V AC±15%

Frequency range

45-66 Hz

Rated Output power

240kW/320kW/360kW400kW

DC output voltage

150~1000Vdc

Number of connectors

2

Type of connector

CCS2 (Rated current: 250A)

Peak efficiency

≥96.5%

Payment method

RFID/ QR code/ credit card (Optional)

Noise level

<65dB (Rated conditions, 25℃,1m distance)

Cable management system

Optional

Certification

CE CB

Operating temperature

-30~55℃, (Reduced output power for temperature above 50℃)

Storage temperature

-40~70℃

IP level

IP55

Size(W×D×H)

850*900*1950mm (Not included CMS) / 850*900*2215mm (Included CMS)

Weight

≤625kg

*The product is continuously updated, subject to the actual purchase
